transport.h File Reference

#include <stdlib.h>
#include "udp_handler.h"
#include "json_handler.h"
#include "tcp_handler.h"
#include "logger.h"
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_system.h"
#include "freertos/queue.h"
#include "freertos/event_groups.h"
#include "freertos/semphr.h"
#include "esp_err.h"
#include "protocol_examples_common.h"

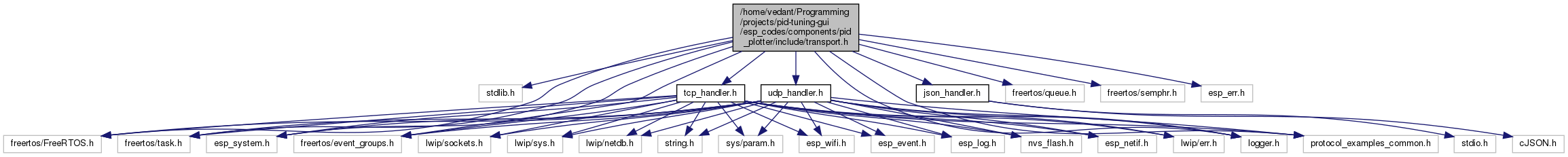

Include dependency graph for transport.h:

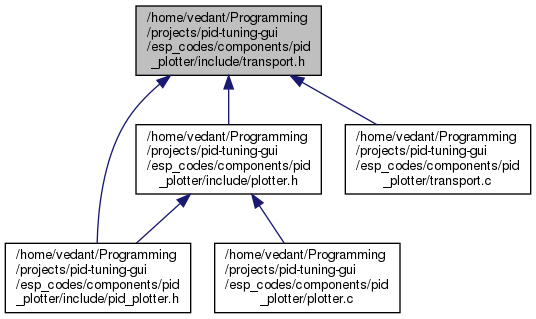

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	pid_terms
struct	data_recv

Macros
#define	MESSAGE_QUEUE_SIZE   CONFIG_MESSAGE_QUEUE_SIZE

Functions
esp_err_t	init_queue (void)
	Initialises message queue. More...
void	init_transport (void)
	Initialises transport, i.e. connect to wifi. More...
esp_err_t	send_to_queue (struct pid_terms pid_data)
	Sends pid_data struct to message queue. More...
struct data_recv	receive_from_queue (void)
	Receive data from queue. More...
void	pid_transport ()
	Handles UDP client, which sends pid_terms received through message queue. More...
void	pid_const_transport ()
	Handles TCP client, which receives pid_constants from server, and parses the data and stores it in a global struct pid_const_data. More...
struct pid_const	pid_const_read ()
	Returns pid_const_data struct. Checks if the resource is blocked by mutex for writing or it is accessible, waits till pid_const_data is accessible and returns it. More...

Variables
TaskHandle_t	pid_transport_handle
TaskHandle_t	pid_const_transport_handle
QueueHandle_t	pid_struct_queue
SemaphoreHandle_t	pid_const_read_write_mutex
struct pid_const	pid_const_data

Macro Definition Documentation

MESSAGE_QUEUE_SIZE

#define MESSAGE_QUEUE_SIZE   CONFIG_MESSAGE_QUEUE_SIZE

Function Documentation

init_queue()

esp_err_t init_queue

(

void

)

Initialises message queue.

Returns

esp_err_t ESP_OK - if queue init sucessfully, ESP_FAIL - if queue init failed

init_transport()

void init_transport

(

void

)

Initialises transport, i.e. connect to wifi.

pid_const_read()

struct pid_const pid_const_read

(

)

Returns pid_const_data struct. Checks if the resource is blocked by mutex for writing or it is accessible, waits till pid_const_data is accessible and returns it.

Returns

struct pid_const - Returns pid_const_data, can be used to access Kp, Ki, Kd and current values

pid_const_transport()

void pid_const_transport

(

)

Handles TCP client, which receives pid_constants from server, and parses the data and stores it in a global struct pid_const_data.

pid_transport()

void pid_transport

(

)

Handles UDP client, which sends pid_terms received through message queue.

receive_from_queue()

struct data_recv receive_from_queue

(

void

)

Receive data from queue.

Returns

struct data_recv - struct containing pid_terms and esp_err_t as members. pid_terms contains pid terms

send_to_queue()

esp_err_t send_to_queue

(

struct pid_terms

pid_data

)

Sends pid_data struct to message queue.

Parameters

pid_data

pid_terms struct contains pid values

Returns

esp_err_t ESP_OK - if queue init sucessfully, ESP_FAIL - if queue init failed

Variable Documentation

pid_const_data

struct pid_const pid_const_data

pid_const_read_write_mutex

SemaphoreHandle_t pid_const_read_write_mutex

pid_const_transport_handle

TaskHandle_t pid_const_transport_handle

pid_struct_queue

QueueHandle_t pid_struct_queue

pid_transport_handle

TaskHandle_t pid_transport_handle
